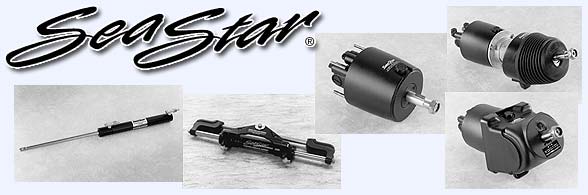

SeaStar

SeaStar
Inboard Steering Systems are engineered and manufactured for all Pleasure
and Work Boat applications up to 38ft. (11.5m) with some exceptions. See
the Application Guide below for specific
details.

For
Commercial and Work Boat applications over 38ft. (11.5m) and Pleasure
Boats not included in the Application Chart below please refer to our
Capilano range of
Inboard Steering Systems.

Four
steps to select a steering system for an inboard powered boat

1.
   From the Application Guide below select
   the System Number appropriate for the vessel based on:
   a) hull type – displacement or planing,
   b) length of vessel,
   c) number of rudders, and
   d) usage of vessel.
2.
   From the Order Guide below select the
   appropriate helms and accessory hardware for each steering station.

3.
   From the Order Guide select the fitting
   and hose kits required for the installation.
4.
   Confirm that you have sufficient space available in:

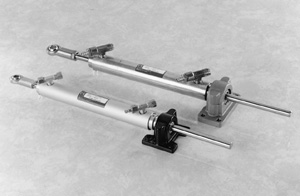

   a) the area the cylinder is to be mounted, and
   b) the dash area for the steering components.

Application
Guide

BOAT LENGTH UP TO:	PLANING HULL				DISPLACEMENT HULL				SAIL
	SINGLE ENGINE		TWIN ENGINE		SINGLE ENGINE		TWIN ENGINE		SINGLE ENGINE
	Pleasure	Work	Pleasure	Work	Pleasure	Work	Pleasure	Work	Pleasure	Work
26FT (8.0M) 32FT (10.0M) 38FT (11.5M) 44FT (13.5M) 50FT (15.0M)	1 2 3 5 _	4 4 5 _ _	1 1 2 3 5	4 4 5 5 _	2 3 5 _ _	4 4 5 _ _	2 3 3 5 _	4 4 5 _ _	4 4 4 5 _	4 4 5 _ _

a)
Displacement Hull – maximum
hull speed does not normally exceed 18 knots.

b) Planing Hull – maximum hull speed normally exceeds 18 knots.



Order
Guide

1.
   For systems 1, 2 & 3 – nylon tubing (3/8″ diameter) is the standard
   requirement for plumbing the system. Copper
   tubing (3/8″ diameter) can be substituted but Fitting Kit HF5507
   is required.
2.
   For systems 4 & 5 – copper
   tubing (3/8″ diameter) is the standard requirement for plumbing
   the system. Fitting Kit HF5508 is required.
3.
   For systems 1, 2, 3, 4, & 5 SeaStar
   outboard hose can be substituted for nylon or copper tube. These
   hoses must be ordered in standard lengths. They cannot be cut to length.
